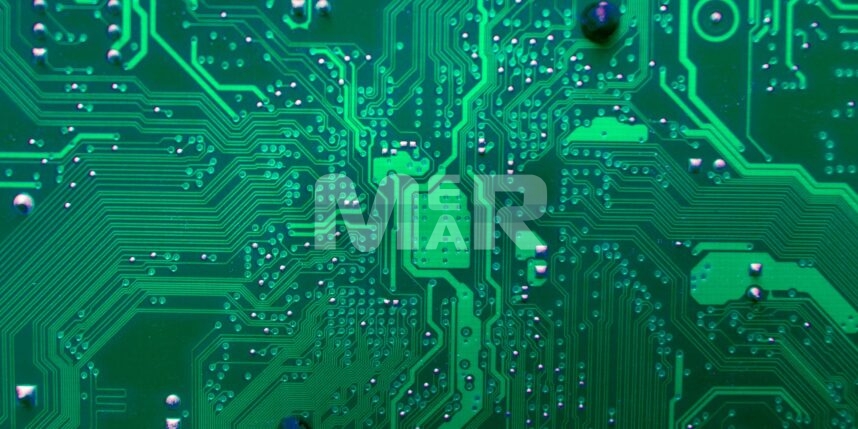

PCB Surface Finish

When it comes to designing a printed circuit board, an important step is to be able to choose the right surface finish. There are a whole lot of factors that go into your choice of surface finish, including but not restricted to the components being used, what kind of production volumes you are looking at, the cost aspect and more. Here are 5 types of surface finishes that you can choose from along with their relative merits & demerits:

Hot Air Solder Leveling (HASL)

When cost is a major criterion, this is the finish to go with, as it is one of the least expensive options. What this finish involves is dipping the board in molten solder and then using a hot air knife to level it. This option works particularly well if you are using through hole or SMT components, even though it isn’t suited for SMT components smaller than 0805. Also this surface finish isn’t RoHS compliant as it uses tin-lead.

Clearly then the benefits of using this surface finish is that:

  • It comes at a low cost
  • It is known for its solderability

However its disadvantages include:

  • It isn’t RoHS complaint
  • Not suitable for small components
  • Not suitable for HDI products

Lead-Free HASL

This surface finish is similar to the Hot Air Solder Leveling finish, except that it does not use tin-lead. What it uses instead is tin-nickel or tin-copper or even tin-copper-nickel-germanium. This makes it RoHS Complaint.

The benefits of using this surface finish accrue from it having:

  • High solderability
  • Low on cost
  • Allowing large processing window.

The disadvantages of using this kind of surface finish is that:

  • It isn’t suitable for small components
  • There is a difference in thickness between large and small pads
  • It needs a high processing temperature

Immersion Tin (ISn)

Unlike the previous surface finishes, this one works well for small components. It uses a flat immersion coating that doesn’t come in the way of small components. Also since tin isn’t expensive, this works well on the cost front as well. The disadvantage of this surface type however includes tarnishing. This is turn means that you need to solder the joints within 30 days. Alternately, you could also use an immersion silver coating. However, this may be possible if the volumes aren’t too high. The advantages of this surface finish therefore are:

Advantages:

  • It works for small components
  • Is not too high on cost
  • Has high solderability
  • Is re-workable

The disadvantages of this surface finish includes:

  • It needs to be handled with care
  • Exposed tin can corrode
  • Baking prior isn’t advisable
  • Peel-able masks need to be avoided
  • Isn’t advisable for multiple assembly processes

Immersion Silver (IAg)

With Immersion silver not reacting with copper like tin, it can be a good alterative for the surface finish. However, it is still known to tarnish on exposure to air. With immersion silver, an anti-tarnish packaging is of essence so that it remains solderable for 6-12 months.

Clearly the advantages of this surface coating include:

  • It works well for small components
  • It is mid-range in terms of cost

The disadvantages of this surface finish includes the fact that:

  • It has to be handled sensitively
  • It needs an anti-tarnish packaging
  • Peel-able masks aren’t recommended to be used.

Electro less Nickel Immersion Gold (ENIG)

This surface finish essentially involves having a thin gold layer over nickel. The components are actually soldered to the nickel surface. The gold layer lands up protecting the nickel. This makes for durability and a long shelf life. ENIG is these days the most used surface finish on account of this as also the fact that it is RoHS Compliant. Of course it terms of cost, this finish does take a beating as it is one of the most expensive.

The advantages of this surface finish include:

  • It is suitable for small parts
  • The added advantage of this is that it is Wire bondable
  • Long shelf life
  • It is also good for Plated through holes

The disadvantages of this surface finish are that it is:

  • Expensive
  • It can be aggressive when it comes to solder mask
  • Not re workable

Making the right choice

Choosing the right surface finish therefore requires a close evaluation of various factors including your production volume. You would also need to take into account factors such as:

  • Durability
  • Environmental Impact
  • Types of components

You will have to take multiple issues into account while making the final choice. For example a cost based approach may see you leaning towards tin-lead HASL. However this has issues in terms of not being RoHS compliant.  An experienced PCB Fabricator can go a long way in studying your requirements and recommending an option that best fits your bespoke requirements.
