Quick Turn PCB Assembly

Leading the way for over 40 years

Quick Turn PCB Assembly

Mer-Mar Electronics has gained unparalleled technical expertise, unmatched engineering services, and state-of-the-art equipment for providing quick turn PCB assembly at the fastest turnaround times without sacrificing quality. We have well-rounded quick turn PCB manufacturers who are committed to providing superior quality PCBs irrespective of the board volumes. Our rich industry experience that spans over 4 decades has given us an extra edge over our competitors and you can bank on our PCB services.

We are a one-stop solution for all types of quick turn PCB assembly services. We utilize the most widely used surface mount, through-hole and mixed techniques for assembling PCBs and can assemble single as well as double-sided PCBs. No matter how complex your board design needs are, we have tailor-made solutions specific to meet your unique needs. We also offer quick turn printed circuit board assembly needs in the most cost-effective way.

We are ISO 9001:2015 certified and committed to constantly improve our processes and operations for delivering sophisticated and superior quality PCBs to our clients. We have been maintaining global quality standards throughout all the phases of the PCB assembly operations by performing rigorous checks, analysis, and inspections.

Speed up your PCB Assembly by
Leaps and Bounds without hassles

Shortest Turnaround Time – No matter how complex your design is, with our quick procurement and assembly services, we provide you the shortest turnaround times with no compromise on quality at the altar of speed.

High-scale Production – Not just reaching the market quickly, we are capable of producing at volume while maintaining consistent quality. Unlike many who are capable of high-quality PCBs at a small volume, we can repeat the same performance over large volumes as well.

Quick Prototype Development – Get rapid prototyping services for fast-tracking large-scale PCB production. We are the ideal fabrication partners providing quick-turn PCB prototypes for improving time-to-market.

Strong Supply Chain Alliances – Help to reducing delays in procuring parts and getting sourced at competitive prices. Over 40 years, we have built strong relationships with industry-leading suppliers who help us in fastening the process.

Quick Turn PCB Assembly

Well-rounded Quick Turn PCB Assembly Services
Under One Roof

Quick Turn PCB Assembly

Basic and Comprehensive Prototypes

Get standard quick turn PCB assembly services suitable for basic circuits with minimal turnaround time. We also provide custom PCB manufacturing services that can provide comprehensive prototypes. Our team is proficient enough to capitalize on the possibilities of standard quick turn PCB prototype in expanding the functionalities, features, and more. If you are looking for the finest and performance-oriented comprehensive PCB prototypes, you’re at the right place!

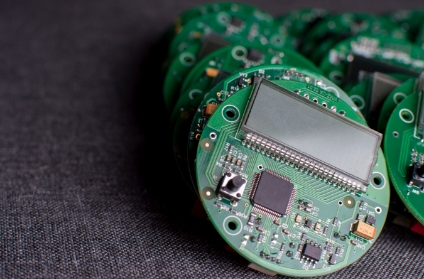

Quick Turn PCB

Low Volume and High Mix Assembly

As a leading PCB manufacturing company, we are also offering low-volume and high-mix quick-turn PCB Assembly services consistent with your specified requirements. We have the capacity and multiple assembly lines for meeting your low volume assembly & high mix assembly requirements without compromising on quality and pricing. Your low volume assembly runs also get the same attention as we do for larger projects and the production efficiency is maintained throughout the cycle. We go to lengths to offer lofty quality and maintain performance standards.

PCB Quick Turn

Turnkey and Consigned Kits

Our core competencies lie in both turnkey and consigned kits which are based on strong support from our technical team and financially strong supply base. Whether you need a turnkey or consigned kit, we are right here to provide you a wide range of services. We are flexible in either way, if you want to go for turnkey kits, we would take all the challenges and overheads head-on and meet your demands in real-time. However, if you prefer consigned kits, then also we are ready to closely collaborate and work with your in-house teams.

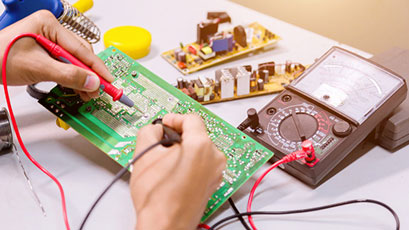

Quick Turn PCB USA

Component Pre-Programming & Labelling

Besides component sourcing, assembling, and manufacturing, we also program as per your specifications. We utilize state-of-the-art automated devices that can program the components prior to the assembly of the finished boards. We also place special emphasis on durable yet cost-effective labeling that can withstand all rigorous manufacturing processes like soldering, galvanization, and cleaning that may require temperatures as high as 1000°F. For this, we offer high-temperature labels that meet these requirements.

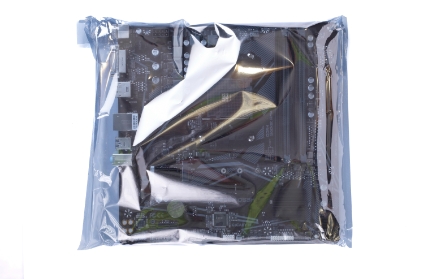

Quick Turn PCB Manufacturers

PCB Packaging and Encapsulation

For us, PCB packing is more than a decorative affair. We are fully aware of how delicate these are and hence we make sure that packages are subjected to all kinds of crushing, shaking, tossing, and dropping that may potentially cause physical damage. We also make sure that the packaging is anti-static, moisture-proof, anti-vibration. We also make sure that the underfill encapsulation process also provides the necessary cushioning in the packaging from external contamination and thermomechanical stress.

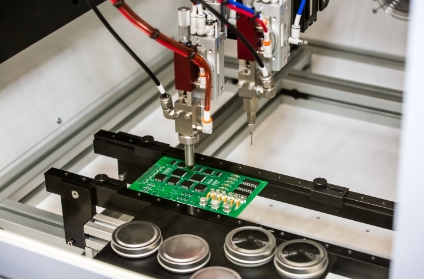

Quick Turn PCB Prototype

Conformal Coating & Potting

We offer both conformal coatings and potting for improving the chemical and thermal resistance in addition to electrical insulation to the delicate PCB. We have deep domain expertise in both the technologies and are versatile to create opportunities for effective protection. We make sure to protect your PCBs from any sort of harsh and corrosive external conditions. Just like your needs, we understand your coating requirements could also be unique and suggest you the best technique depending on your application and requirements.

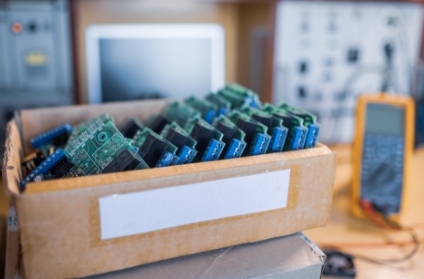

Quick Turn PCB Boards

Box builds and Mechanical Assemblies

We also provide box-build and mechanical assembly services for both partial and full product integrations that can be readily used by the end-users. Our technicians are well-equipped to handle complex box build and mechanical assemblies that would be needing multiple cable harnesses, soldering, pneumatic assembly, dust-free environment, and specific torque requirements. Get world-class printed circuit board assembly services with our tools and resources that enable assembling even in the most challenging product configurations.

Our Capabilities in Quick Turn PCB Assembly

You can always count on our quick turn PCB assembly capabilities in offering quality fast turn PCB assemblies irrespective of whether you need a quick turn PCB prototype or full production runs.

CapabilityStandard
Quick Turn PCB Assembly ServicesBasic and Comprehensive Prototypes
Low Volume and High Mix Assembly
Turnkey and Consigned Kits
Packaging and Encapsulation
Conformal Coating & Potting
Box builds and Mechanical Assemblies
Solder TypesLead-free/ROHS compliant, Leaded/ROHS compliant
Parts AcquisitionFull Turnkey, Partial Turnkey, Kitted/Consigned
Circuit Board TypesFR4 Rigid Boards
Flex Boards
Rigid-Flex Boards
Assembly Options for Quick Turn PCBThru-hole
Surface Mount (SMT)
Mixed Technology (Thru-hole/mixed type)
Ball Grid Array (BGA)
Surface FinishesHot Air Solder Levelling, Electroless Nickel Immersion Gold, Immersion Silver, Lead-free HASL
Testing and InspectionX-ray Inspection, Visual Inspection, In-circuit Testing, AOI Testing, Functional Testing

– 01

Quick Turn PCB Assembly Testing Capabilities

Mer-Mar Electronics is your manufacturing partner for meeting your high performance and quality expectations. We perform a Design for Manufacturability (DFM) check for detecting any issues that could take down the quality as well as board failures. We dedicate ourselves to proper troubleshooting, identify, and eliminate any root cause of the non-conforming materials.

Quality remains our core commitment and we strive to achieve superior quality products. We deploy a suite of inspection and testing methods for quality assurance and quality checks at various manufacturing and assembly phases. Our key services to ensure quality include –

  • Inspection and Testing Methods tailored to your requirements
  • Strong Quality Management System
  • Detailed documentation and planning
  • Troubleshooting and Root Cause Analysis

We offer several industry-recognized testing methods like

  1. X-ray inspection
  2. In-circuit Testing
  3. Flying Probe Testing
  4. Functional Testing
  5. Visual Inspection
  6. 2D and 3D Solder Paste Inspection (SPI)
  7. 3D Automated Optical Inspection (AOI)
  8. Dielectric Testing
  9. Functional Testing

– 02

Quick Turn PCB Assembly Technologies

Mer-Mar Electronics, over the years, has gained expertise in multiple fast turn PCB assembly technologies to meet complex client requirements. We have been offering the following technologies:

  1. Surface Mount Technologies
  2. Through-hole Technique
  3. Mixed

1. Surface Mount Technology – We specialize in SMT to mount the components onto the surface of the PCBs. You can count on Mer-Mar Electronics for reliable SMT PCBs. Whether you need a PCB prototype or a large PCB assembly, we are fully equipped with in-house technicians. We have a huge competitive advantage that is complemented by cutting-edge technology and a competent engineering team. Our quick-turn PCB assembly experts use Surface Mount Technology for building both miniature and large-size PCBs. We also perform robust quality checks for building flawless PCB assemblies that adhere to the highest industry standards.

2. Through-hole Technique – We utilize automated equipment for performing through-hole PCB assembly. Whether it is automated insertion equipment, computerized wave soldering, aqueous circuit board washing, automated optical inspection, etc. we have the capacity to ensure the most accurate boards at your hand. We also provide conformal coating and PCB encapsulation services.

3. Mixed – At Mer-Mar Electronics, we always strive to meet the evolving assembly needs of multiple industries. Our mixed technology PCB assembly services are meant to provide solutions for various applications where a combination of both surface mount assemblies and through-hole technologies are required. Whether you need single or double-sided, as well as multilayer mixed technology circuit boards, you can always count on Mer-Mar Electronics most competent team.

– 03

Sophisticated Industrial Applications of Our Quick turn PCB Assembly

We have strong in-house capabilities who have vast experience working with diverse industries and meeting their bespoke requirements. Some of the industries we’ve worked with are

  1. Aerospace
  2. Medicine
  3. Semiconductor
  4. Telecommunications
  5. Industrial equipment
  6. Defense
  7. Energy

– 04

Certifications

ISO 9001:20015 Logo Itar Logo
  1. IPC-A-610 Class 2 or 3
  2. IPC-7711 class 2 or 3
  3. ISO 9001:2015
  4. ISO 13485:2016
  5. UL standards
  6. RoHS compliant
  7. ITAR certified

FAQs

Looking for quick turn printed circuit board assembly? Send us inquiry to Get a Quick Turnkey PCB Assembly Quote based on your custom requirements.

If you have any queries regarding to our turnkey PCB assembly, quick turn PCB assembly services or need an urgent assistance, then please don’t hesitate to contact our team of skilled personnel’s. Send us an email with your queries at sales@mermarinc.com or call us at (760) 244-6149. We are looking forward to hearing from you!
